Ford · 2000-2004 · EBC325
Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage) ABS module repair
Mail in your Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage) ABS module with our prepaid label. It comes back repaired and still coded to your VIN — or, if it is past repair, as a refurbished unit with your data cloned on, or with your repair price refunded minus shipping.
- Unit: EBC325
- Stability control: depends on trim
- 12 sourced part numbers
- 6 fault codes
Known failure

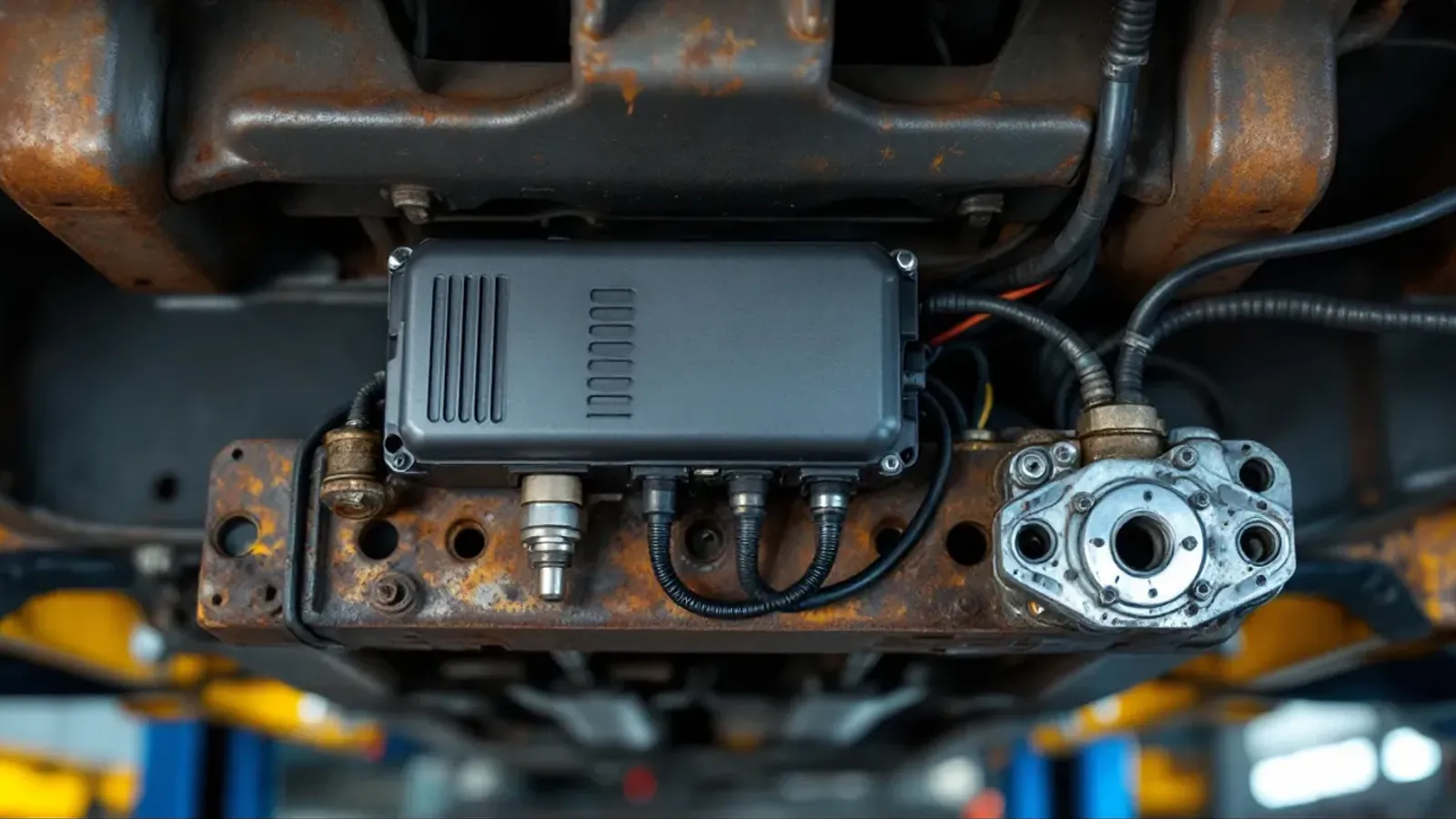

The ABS module in the Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage)
The 2000-2004 Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage) uses this ABS unit: Kelsey-Hayes Kelsey Hayes 325 ABS. source ↗ On our bench that puts it in the Kelsey-Hayes EBC325 family, alongside 5 other vehicle lines on this site.
Its ABS module appears under 12 part numbers in the sources we checked, starting with YL34-2C346-AG (A rebuilder: 2000-2003 F-150 KH325 compatible list (engineering number style)). source ↗ Different numbers usually separate model years, drivetrains and option packages — match the number on your own module label rather than the year alone. Only the control module ships — it comes off the valve body on its own, so the brake lines stay on the vehicle.
Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage) ABS module part numbers
Match the number printed on your module's label. Each number links to the page it was found on.
YL34-2C346-AG
source ↗A rebuilder: 2000-2003 F-150 KH325 compatible list (engineering number style)
1L34-2C346-AA
source ↗A rebuilder: 2000-2003 F-150 KH325
1L14-2C346-AA
source ↗A rebuilder: 2000-2003 F-150 KH325
YL3Z-2C219-A
source ↗A rebuilder: 2000-2003 F-150 KH325. Ford catalog (2004 F-150): 'Kit - Repair', 'ECU, 4 wheel ABS - less 7700 GVW - rear disc brakes' (4.2L/4.6L/5.4L)
YL3Z-2C219-B
source ↗A rebuilder: 2000-2003 F-150 KH325. Ford catalog (2004 F-150): 'Kit - Repair', 'ECU, 4 wheel ABS - 7700 GVW - rear disc brakes'
6L3Z-2C219-C
source ↗A rebuilder: 2000-2003 F-150 KH325 compatible list
13640613D
source ↗A rebuilder: 2000-2003 F-150 KH325 - Kelsey-Hayes supplier-style number
13640614D
source ↗A rebuilder: 2000-2003 F-150 KH325 (Kelsey-Hayes style)
13640618F
source ↗A rebuilder: 2000-2003 F-150 KH325 (Kelsey-Hayes style)
13640619F
source ↗A rebuilder: 2000-2003 F-150 KH325 (Kelsey-Hayes style)
13640625G
source ↗A rebuilder: 2000-2003 F-150 KH325 (Kelsey-Hayes style)
13500409C
source ↗A rebuilder: 2000-2003 F-150 KH325 (Kelsey-Hayes style)
Reading the label · Ford-style number (Jaguar / Land Rover, Ford era)
Prefix (4 chars: year letter/digit + vehicle code) + base + suffix. ABS/ESP bases seen on Jaguar/Land Rover units: 2C219, 2C353, 2C405, 14F447. a rebuilder's MK25 list has Jaguar-era examples (2W932C219BB, 4R832C219BD) but the same page also covers Ford/Lincoln, so those are format examples only. source ↗
e.g. BJ32-2C405-AG · GX53-2C353-AH · EX53-14F447-BC
Reading the label · Jaguar (pre-Ford numbering and later Jaguar numbers)
1995-2003 Jaguar ABS modules: three letters + '2210' + two-letter suffix (LNA/LNC/LNF/LJA/MNA 2210 xx), plus JLM + 5 digits on the 1995-1997 module. Later Jaguar part numbers: C2x / T2x + 4-5 digits (e.g. C2Z28243, T2R22161). source ↗
e.g. LNC2210AD · LNA 2210-AA · MNA 2210-AB
Reading the label · Ford / Lincoln / Mercury - engineering and service numbers
Prefix (4 chars) - base (5 chars, digit-letter-3 digits for these parts) - suffix (1-3 letters). Prefix = decade letter/digit + year digit + vehicle-line letter + design-responsibility letter. A 'Z' in the 4th prefix position marks a Ford Customer Service (service part) number, e.g. 9L3Z-2C219-A; pe source ↗
e.g. 9L3Z-2C219-A · 7L34-2C346-A · CL3Z-2C215-C
ABS fault codes on the Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage)
Our promise
Can’t be repaired? You don’t pay for a repair.
If the bench finds your module past repair, we stop and tell you before doing anything else. Then you choose:
- 1A replacement — a refurbished unit of the same family with your VIN, coding and configuration cloned onto it, from $950. You pay only the difference from what you already paid, and we confirm the amount with you first.
- 2Your module back — with the repair price refunded, minus shipping costs.
Either way, nothing that changes your price happens without your OK.
Refund stages in our terms →Other vehicles with the EBC325
Same unit family, same bench process and the same starting price.
- 1999-2006 Chevrolet Silverado 1500 / 2500 (GMT800)
- 2002-2008 Dodge Ram 1500 (DR)
- 1998-2005 Dodge Ram 1500/2500/3500 (BR/BE, DR/DH)
- 2003-2009 Dodge Ram 2500
- 2000-2005 Ford F-250 / F-350 Super Duty
Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage) ABS module questions
Which ABS module is in the Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage)?
The source we cite lists it as: Kelsey-Hayes Kelsey Hayes 325 ABS. We price and bench it as part of the Kelsey-Hayes EBC325 family. The exact unit is confirmed from your module label on arrival.
How much does ABS module repair cost for a Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage)?
Repair of your own module starts at $499; a replacement unit with your data cloned starts at $950. Return shipping starts at $29.95 and the label to us is prepaid.
My Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage) module number is not listed. Can you still repair it?
The 12 numbers above are the ones we could source, not every one that exists. Send us a photo of the label first, or order the repair and we confirm the unit before any work.
Ford F-150 (1997-2003 body, incl. 2004 F-150 Heritage) ABS light on? Fix the module you already own — from $499.
Look up your part number and order online — we email you a prepaid label to our lab. Or send us a photo of the label and your VIN first, and we'll tell you what you have and what it costs.
Back with your VIN and coding · can’t be repaired? repair price back, minus shipping · 1-year warranty · rush 2–3 days +$100
